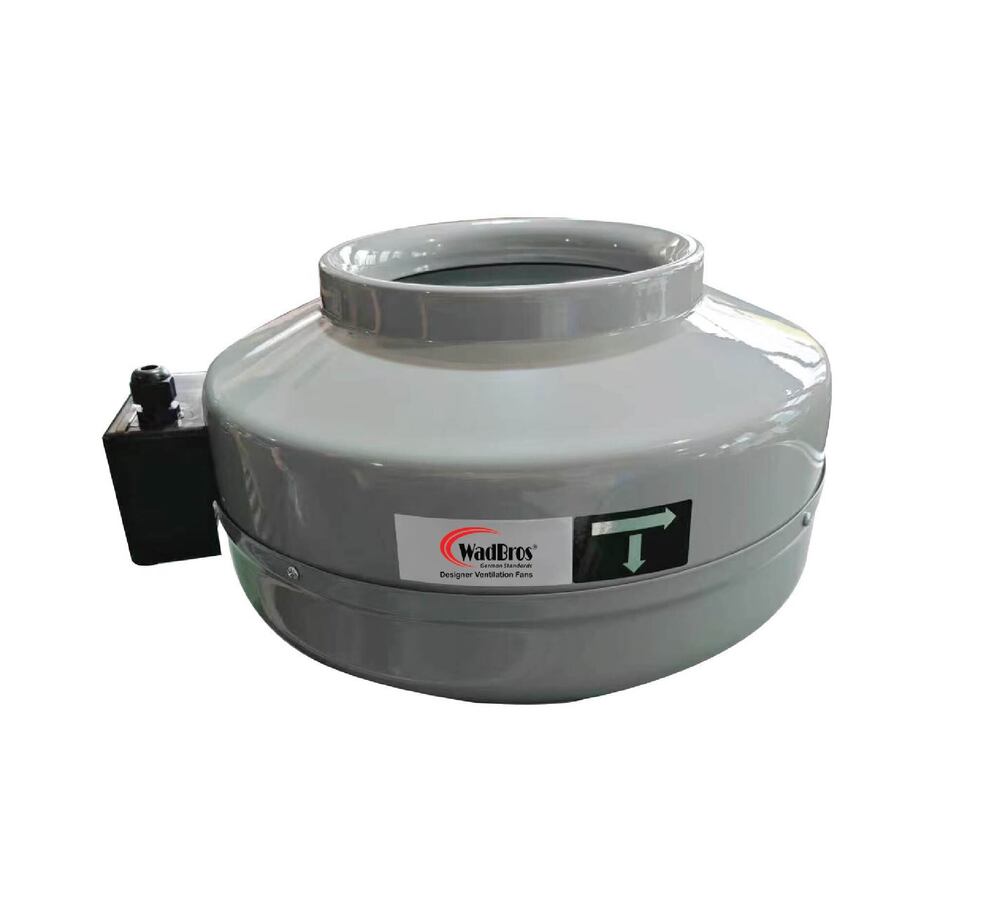

Inline Metal Exhaust Fan

Name: Inline Metal Exhaust Fan
Brand: WADBROS IMPORTS & EXPORTS
Price: 36290 INR
Availability: InStock

Price 36290 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Inline Metal Exhaust Fan Specification

Power Consumption
65-150W

Voltage
220-240V AC

Speed
Single/Variable (Commonly 1400-2800 RPM)

Pressure
Strong static pressure performance (max ~300 Pa, model dependent)

Air Volume
High (Typically 500-1500 m3/h depending on model size)

Revolution
1400-2800 RPM (Depending on Model)

Power
65-150W (Depending on Model)

Noise Level
Low Noise (~30-45 dB at 1.5m, model dependent)

Product Type
Duct Exhaust Fan

Type of Fan
Inline Centrifugal Exhaust Fan

Power Mode
Electric

Installation Type
Inline / Duct Mounted

Blade Material
Metal

Shape
Cylindrical / Round

Number of Blades
Multiple (Centrifugal impeller design)

Mounting
Duct / Wall

Finish
Anti-corrosive powder coating

Frequency
50/60 Hz

Body Material
Powder coated metal housing

Motor Type
100% Copper winding, Enclosed

Usage/Application
Ventilation for ducting in HVAC, grow tents, industrial kitchens, workshops, laboratories

Control Type
On/Off or Speed Controller Compatible

About Inline Metal Exhaust Fan

The Wadbros IL-M Series is a heavy-duty centrifugal inline duct exhaust fan built to provide high suction capacity and superior static pressure across extended ducting systems. Equipped with an external rotor motor, this series delivers dependable balance, rugged reliability, and continuous performance even under significant aerodynamic resistance.

Its aerodynamically optimized, large impeller design prevents dust buildup and ensures smooth airflow, making it an ideal ventilation solution for demanding environments with heavy particulate air, smoke, grease, or high moisture.

Key Features & Advantages

High Static Pressure Performance: Overcomes resistance from long duct runs, sharp bends, and multi-grille layouts without losing suction power.
Rugged External Rotor Motor: A precision-balanced motor reduces mechanical vibration, extends service life, and delivers energy-efficient airflow.
Heavy-Duty Impeller Design: Handles particulate-laden air and industrial exhaust smoothly, preventing clogging and reducing maintenance intervals.
Low Noise Output: Designed for quiet continuous operation, generating sound levels as low as 30 dB(A) depending on the model.
Versatile Application Support: Designed for commercial kitchens, bathrooms, laboratories, industrial workshops, and warehouse ventilation.

Dimensions (mm)

Model	A	B	C	D	E
IL-M 10	202	97	23	287	240
IL-M 15	226	147	25	373	333
IL-M 20	224	197	26	373	333
IL-M 31	233	315	25	441	401
IL-M 35	410	350	35	545	505
IL-M 40	410	395	35	545	505

Technical Specifications

Model	Fan Size (mm)	Rated Voltage (V)	Rated Frequency (Hz)	Rated Power (W)	Airflow (m/h)	Noise dB(A)	RPM	MRP
IL-M 10	100	220240	5060	26	200	30	2450 / 1800	8,790/-
IL-M 15	150	220240	5060	50	500	35	2600 / 2080	10,590/-
IL-M 20	200	220240	5060	70	850	50	2500 / 2050	14,090/-
IL-M 25	250	220230	5060	175	1600	60	2500	28,290/-
IL-M 31	315	220240	5060	280	2500	66	2500	44,790/-

Primary Applications

Commercial & Hospitality: Kitchen exhaust hoods, hotel restrooms, conference halls, and basement ventilation.
Industrial & Technical: Manufacturing workshops, paint booths, server rooms, and chemical exhaust setups.

Powerful Ventilation for Industrial and Commercial Spaces

Specially engineered for high-demand settings, this inline exhaust fan offers reliable ventilation for HVAC ducting, grow tents, kitchens, workshops, and labs. Its centrifugal impeller maximizes airflow and pressure, efficiently removing fumes, heat, or odor, while operating at impressively low noise levels. Powder-coated for resistance against corrosion, it's built to perform in challenging environments and deliver long-lasting service.

Flexible Installation and Operation

Designed for versatility, the fan can be installed inline with ducting or mounted on the wall, fitting seamlessly into a variety of ventilation systems. Compatible with standard 220-240V AC power supply, it supports both straightforward on/off control and advanced speed controllers for precise airflow management. Its cylindrical form and robust metal blades enhance durability and adaptability.

FAQ's of Inline Metal Exhaust Fan:

Q: How is the Inline Metal Exhaust Fan installed in a ventilation system?

A: The fan is designed for inline or duct mounting and can be fixed directly within the ductwork or on a wall. It comes with standard mounting brackets and clear instructions, making it easy for HVAC technicians or installers to integrate it into new or existing systems.

Q: What types of spaces and applications are suitable for this exhaust fan?

A: This fan is ideal for ventilation in HVAC ducting, grow tents, industrial kitchens, workshops, and laboratories, providing efficient removal of stale air, fumes, odors, and excess heat in both commercial and industrial settings.

Q: When should I use the speed controller with this exhaust fan?

A: A speed controller is recommended when variable airflow is needed, such as during fluctuating occupancy or process conditions. For constant ventilation needs, the simple on/off operation can be used. Always ensure the controller is compatible with the motor specifications.

Q: Where does the fan achieve optimal performance?

A: Optimal performance is achieved when installed in straight, unobstructed duct runs with secure fittings and proper wiring. It performs exceptionally well in environments that demand high air volume and static pressure, including demanding industrial and laboratory settings.

Q: What benefits does the anti-corrosive powder-coated housing provide?

A: The powder-coated metal housing offers enhanced durability and resistance to rust and corrosion, especially in humid or harsh environments. This ensures a longer lifespan and maintains the fan's aesthetics and performance over time.

Q: How does the fan's centrifugal impeller design enhance ventilation efficiency?

A: The centrifugal impeller design allows the fan to handle higher static pressures and maintain strong, steady airflows-making it effective in ducted systems that require air to be pushed or pulled over longer distances or through filters.
